Construction Attachment Hydraulic Pile Breaker
Product Description

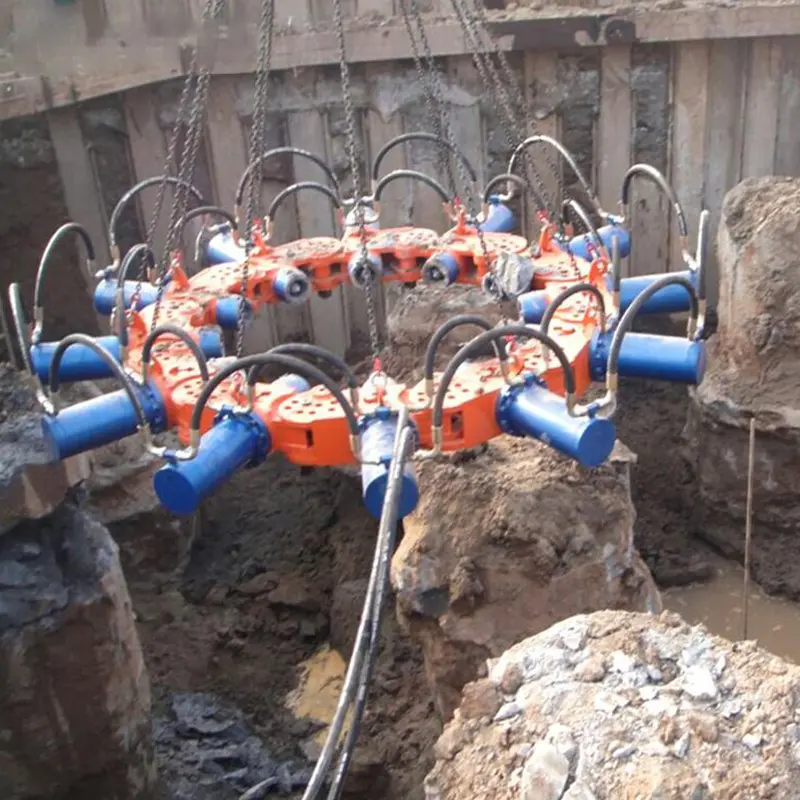

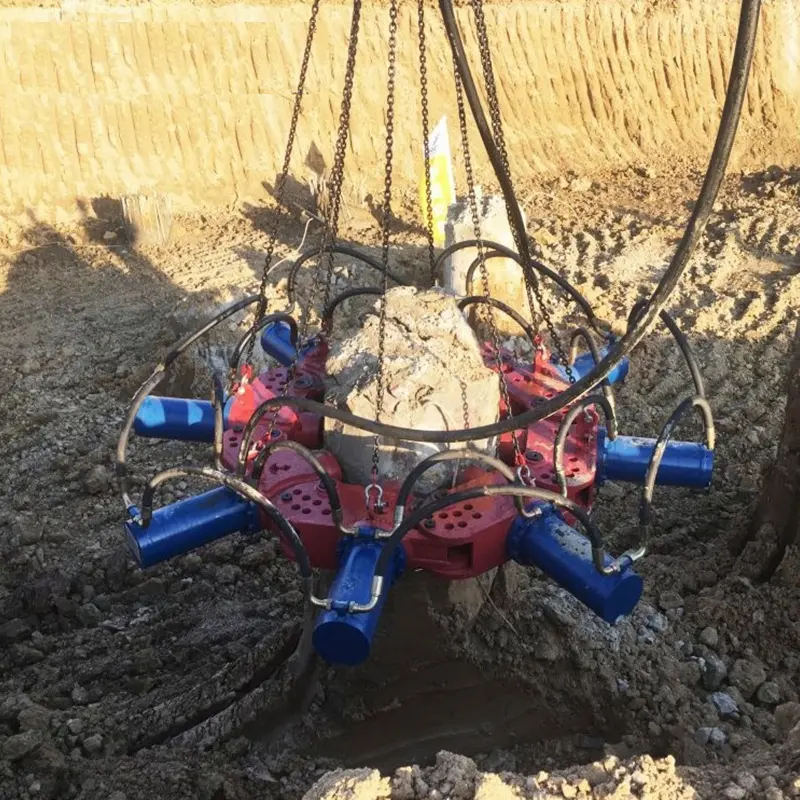

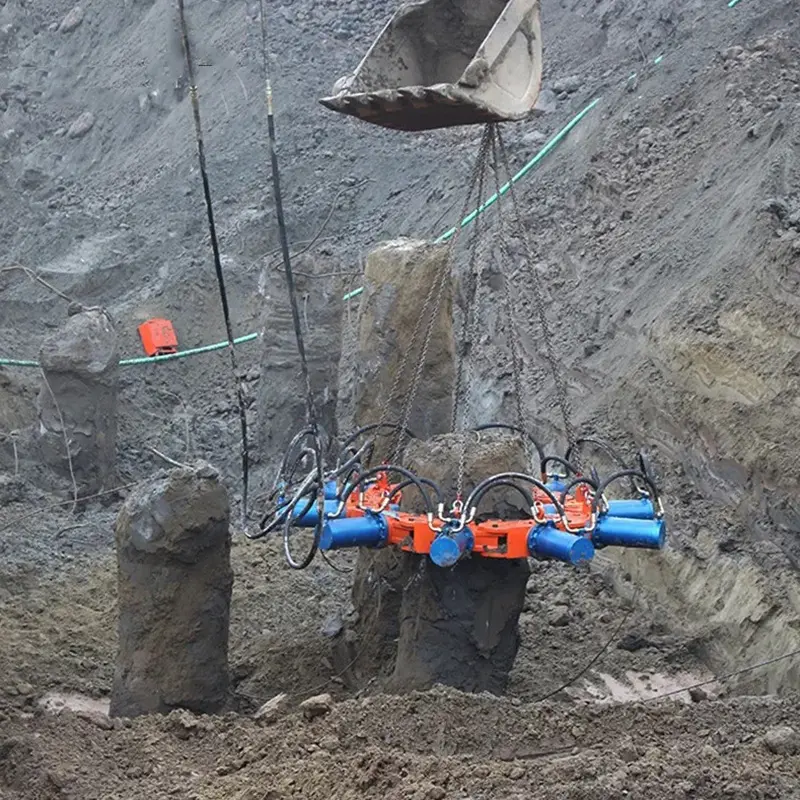

Powered by a robust hydraulic system, this breaker is designed to handle prefabricated and cast-in-place piles such as concrete, pipe, and square piles. It excels in bridge, wharf, and construction applications, providing efficient pile head trimming, demolition of existing piles, and removal of compromised foundation structures with precision and durability.
Specification Sheet
| Model Number | 4 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | |
| Combination Total Weight | kg | 1600 | 2640 | 2970 | 3300 | 3630 | 3960 | 4290 | 4620 | 4950 | 5280 | 5610 | 5940 |
| Pile Diameter Range | mm | 400-600 | 600-800 | 800-1000 | 1000-1150 | 1150-1300 | 1300-1500 | 1500-1650 | 1650-1800 | 1800-1970 | 1970-2200 | 2200-2360 | 2360-2500 |
| Hydraulic Excavator | T | 20-30T | 30-40T | Hydraulic System/Pump Station | |||||||||
| Max Thrust | 300KN | Max. Cylinder Required | 20L/min | Machinery Tonnage | 20T | Location pin | Φ40 | ||||||
| Max. Cylinder Trip | 300mm | Chisel Diameter | 110mm | Single Module Weight | 335KG | ||||||||
| Max. Cylinder Pressure | 30MPa | Single Broken Pile Height | ≤500mm | Single Module Size | 1015-865-340mm | ||||||||
* Technical reasons are subject to change without prior notice.
Product Features
1. Cutting-Edge Performance: Our pile breaker delivers superior efficiency and exceptionally low noise levels during operation.

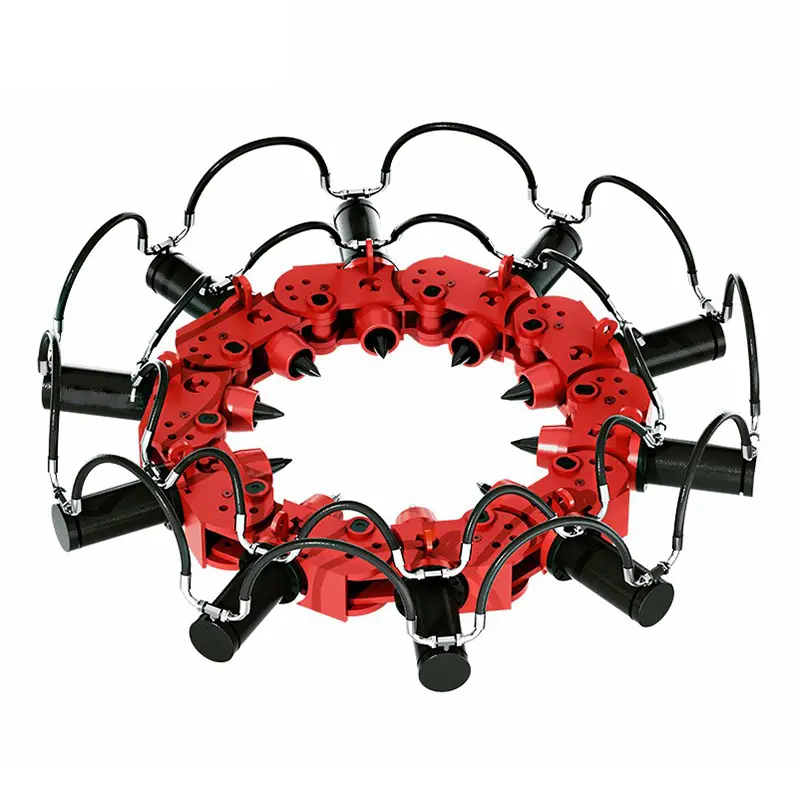

2. Modular Flexibility: Featuring an advanced modular design, it easily adapts to break piles of various diameters through customizable module combinations.
3. Exceptional Value: It offers high cost-effectiveness with low operating costs, rivaling the performance of international counterparts at a competitive price.
4. User-Friendly&Safe: Designed for intuitive operation without requiring specialized skills, it ensures both ease of use and enhanced safety.

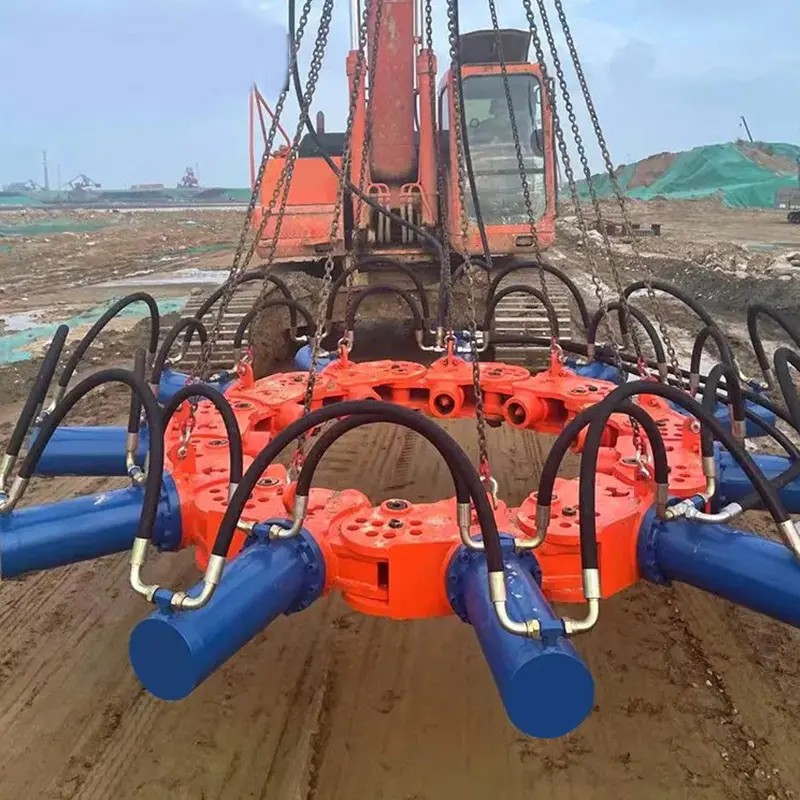

5. Versatile Compatibility: Compatible with a wide range of engineering machinery, including excavators, cranes, and telescopic arms. It supports functional commonality and cost efficiency.
6. Long-Life Design: Engineered for durability and extended service life, it maximizes productivity and delivers optimal returns on investment.
Application
Ideal for construction, bridge, and dock projects, it is widely used for:
1. Removing old or existing piles;
2. Trimming pile heads;
3. Clearing collapsed foundation structures quickly and effectively.
