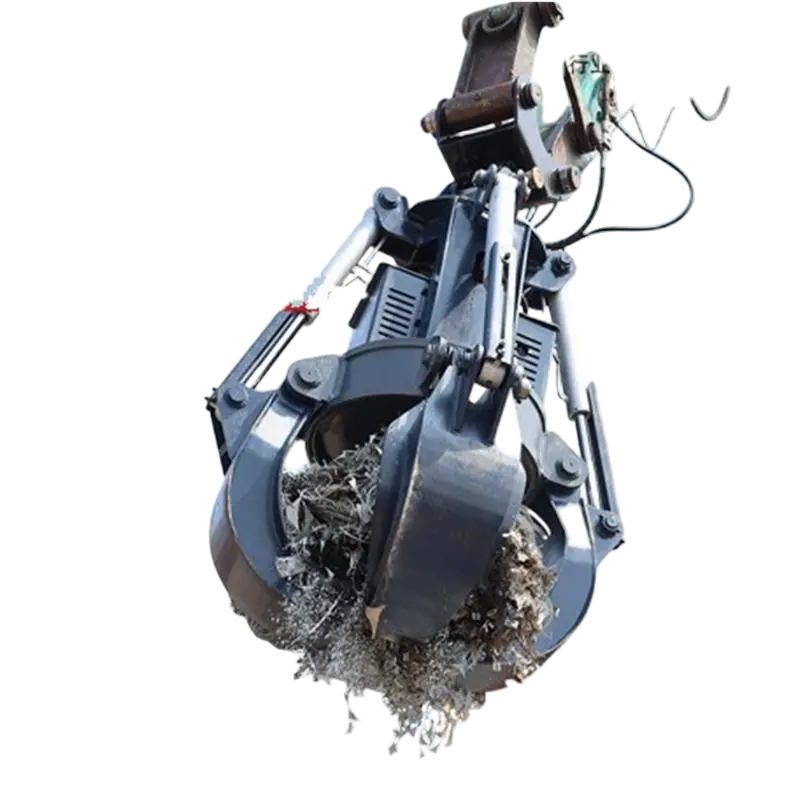

Product Description
Composed of high-strength magnets or advanced magnetic assemblies, the grapple delivers robust magnetic force for firm adhesion to magnetic objects. This design enables reliable grasping and accurate manipulation in demanding operational environments.
Specification Sheet
| Model | WMG08 | |
| Weight | kg | 2900 |
| Max Jaw Opening | mm | 3300 |
| Closing Height | mm | 2500 |
| Set Up Pressure | bar | 260-320 |
| Operating Flux | lpm | 160-200 |
| Magnet Diameter | mm | 1015 |
| Magnet Adsorption Weight | t | 2-3 |
| Claw Capacity | liter | 1000 |
| No. of Jaw | piece | 4 |
| Suitable Excavator | ton | 20-45 |
* Technical reasons are subject to change without prior notice.
Product Features
1. Powerful Magnetic Grasping: Crafted from high-strength magnetic materials, it generates a super-strong magnetic force for secure and reliable gripping.
2. Firm Automatic Adhesion: Instantly establishes tight adhesion upon contact with magnetic objects, streamlining operations and boosting productivity.
3. Precise and Flexible Manipulation: Designed for accurate control, it is ideal for a wide range of applications including material handling and assembly.
Application

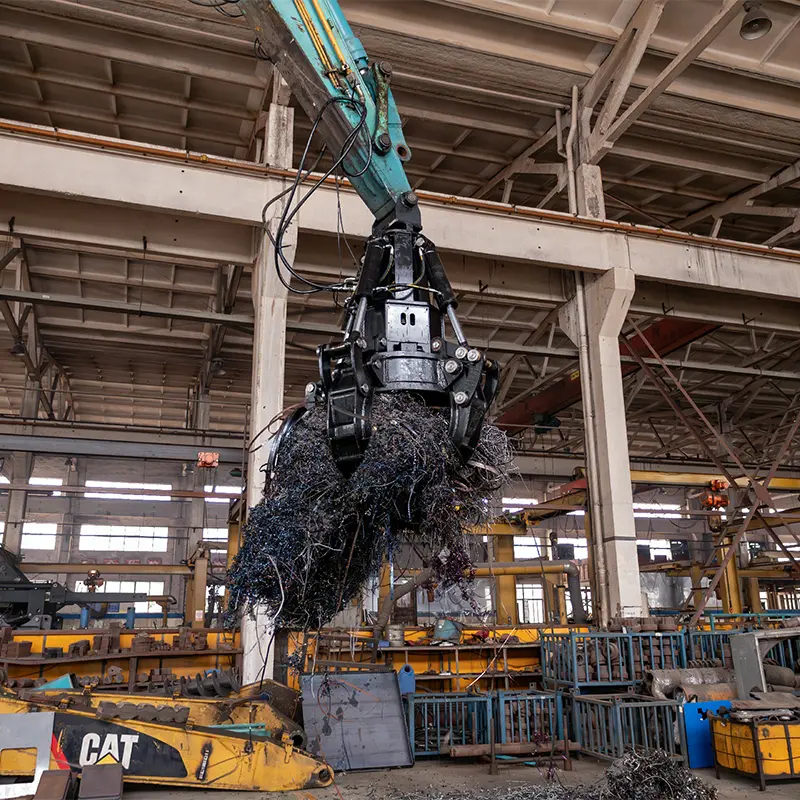

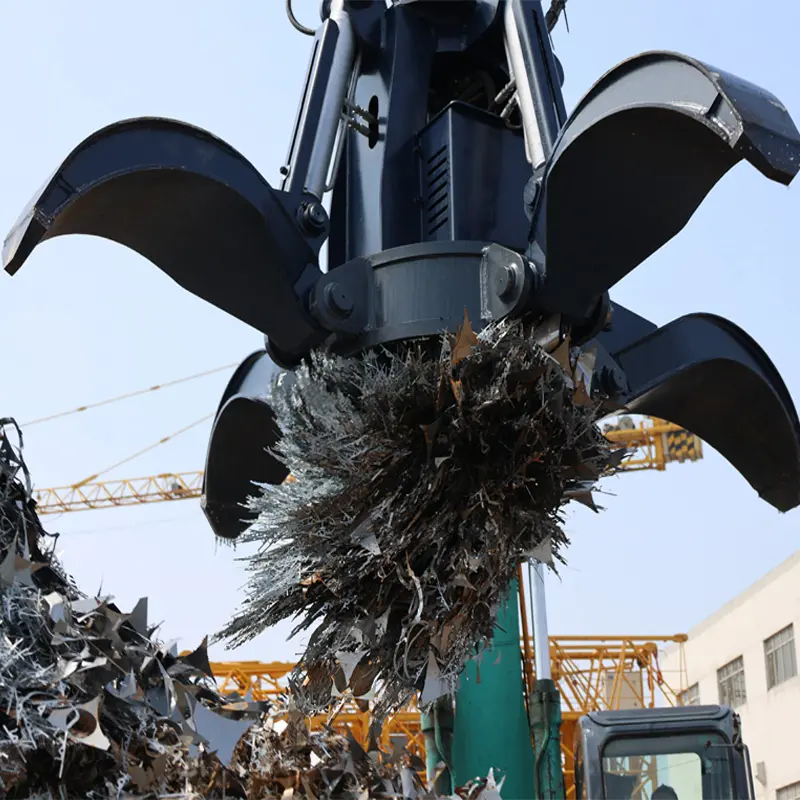

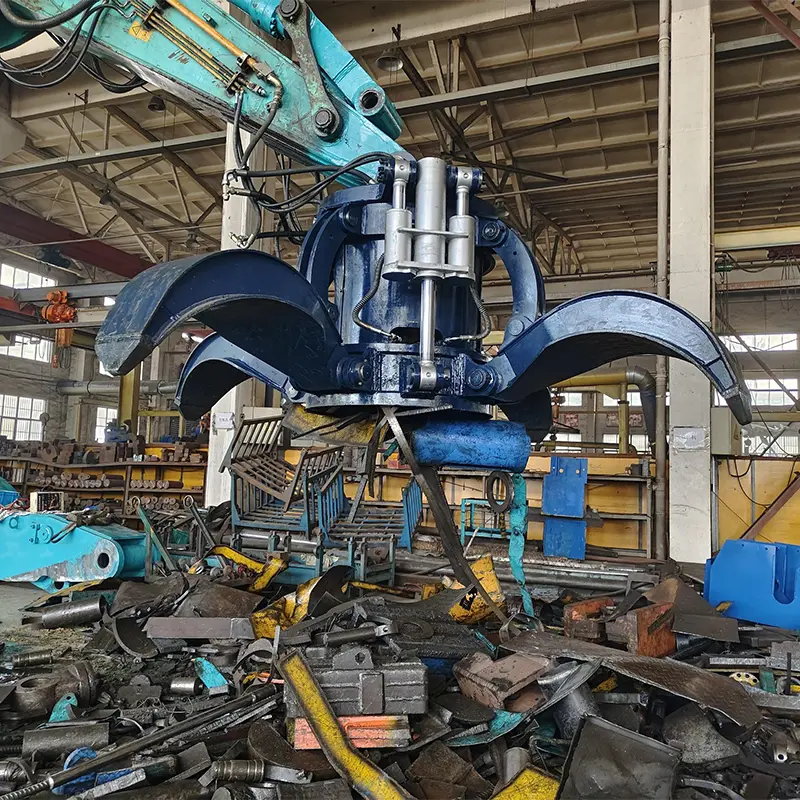

Handling Scrap Metal
Transferring Materials
Accumulating Metal Chips
Recycling Scrap
